Foam Insulated Panels

Foam Insulated Panels

Foam insulated panels can reduce a buildings energy usage, offering R-values up to R-48. The foam insulation panels are tested to stay air and weather tight for the life of the building. Soundproofing panels are available and can help soundproof a metal building. Fire retardant foam insulation panels are available as well. There are several roof and wall finishes to choose from to give your building a finished look.

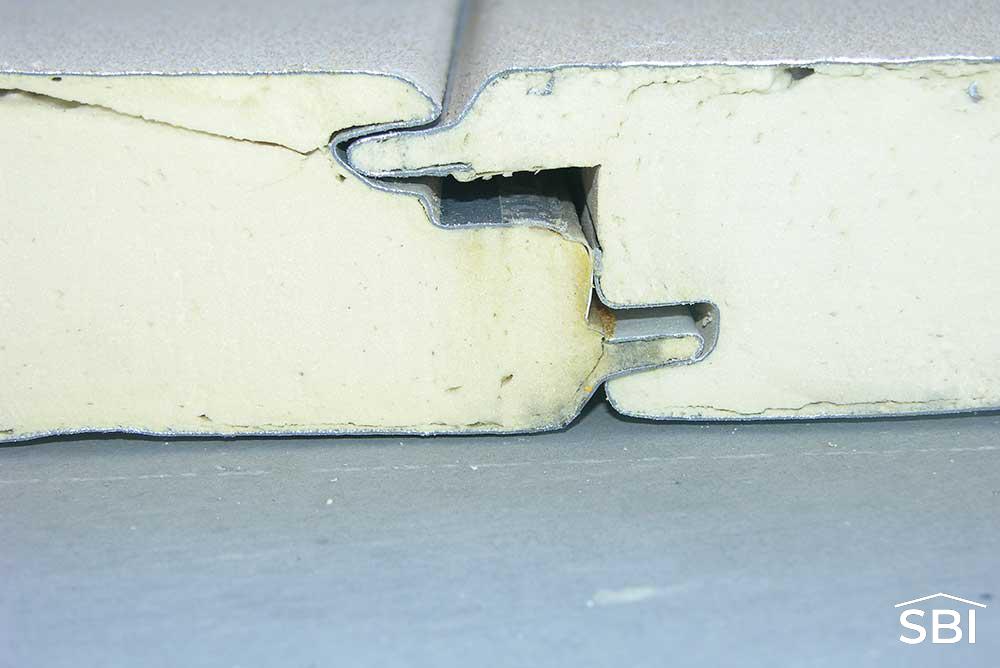

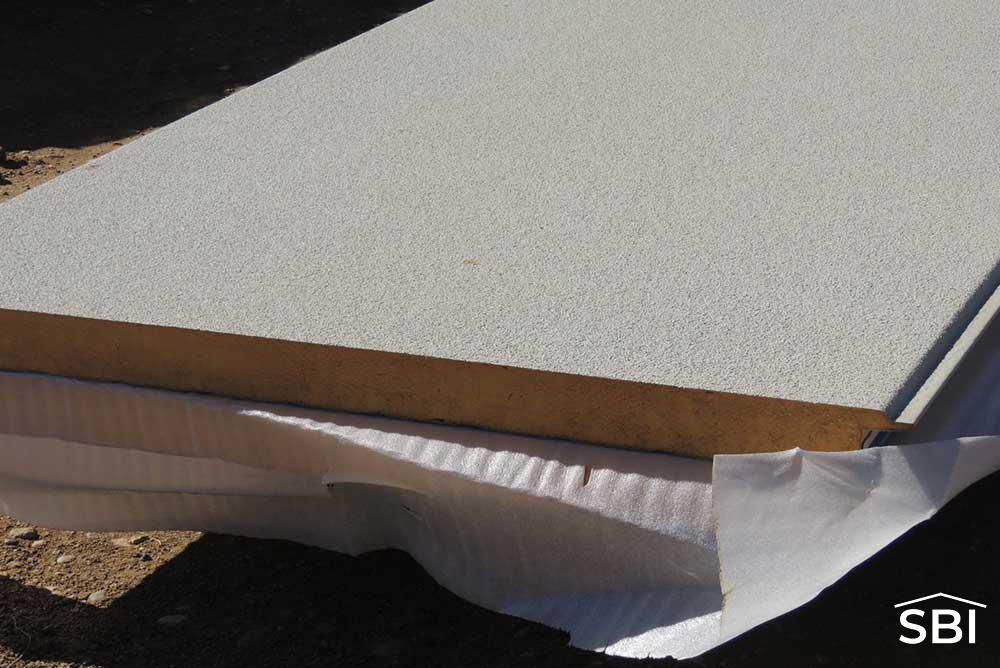

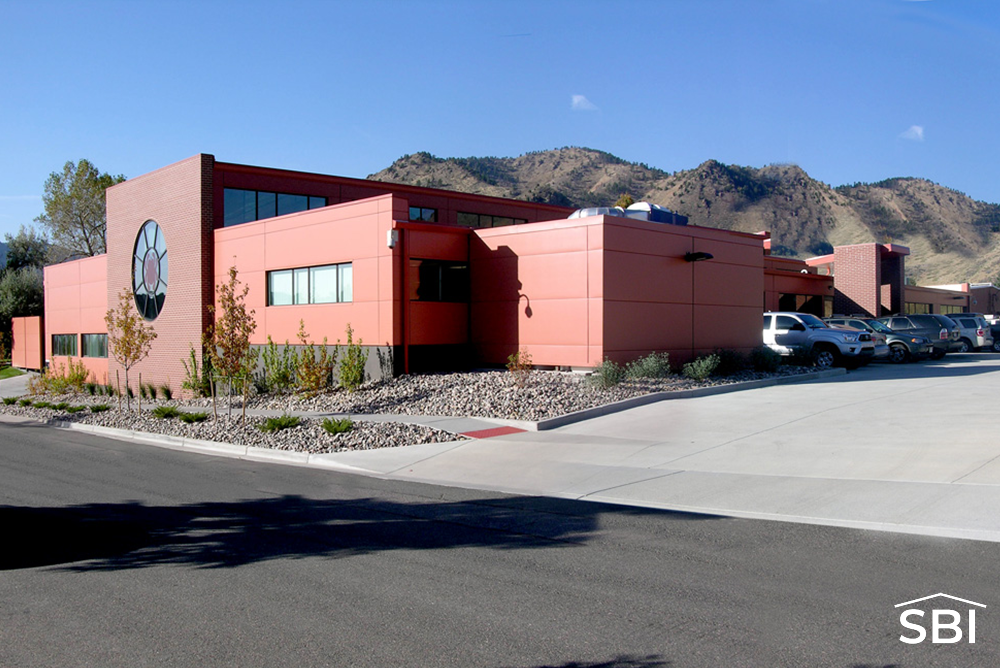

Foam Insulated Panels are a panel that contain a finished exterior and finished interior with insulation sandwiched in between, all in one panel! The Panels Are Attractive, with hidden fastener profiles that provide unique solutions to satisfy needs of architecturally sensitive design boards. From embossed steel finishes, stucco, to granite stone exterior finishes, foam panels offer a great range for specific external designs.

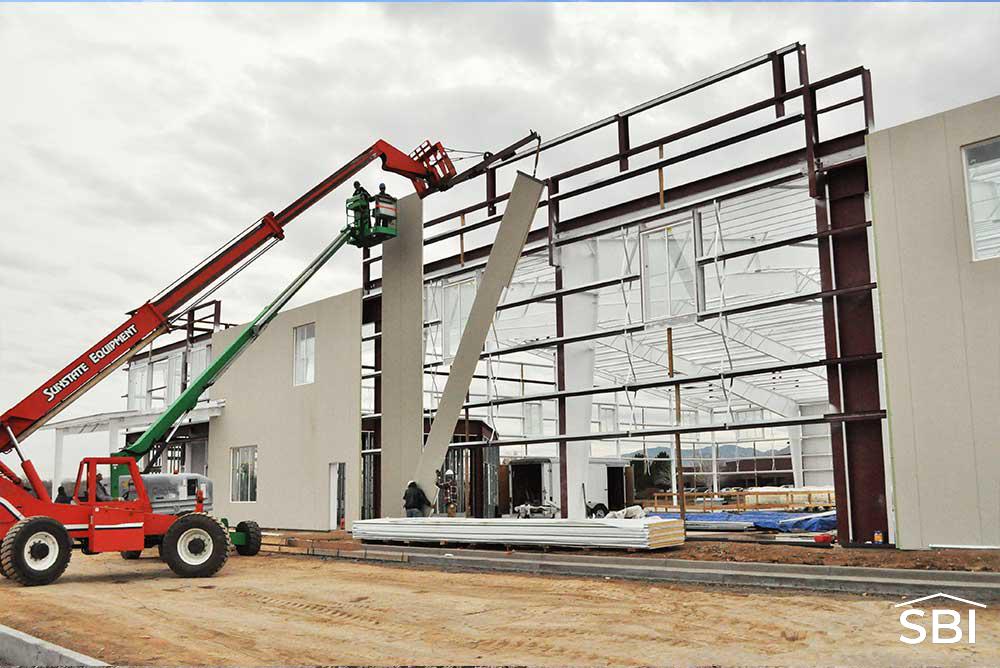

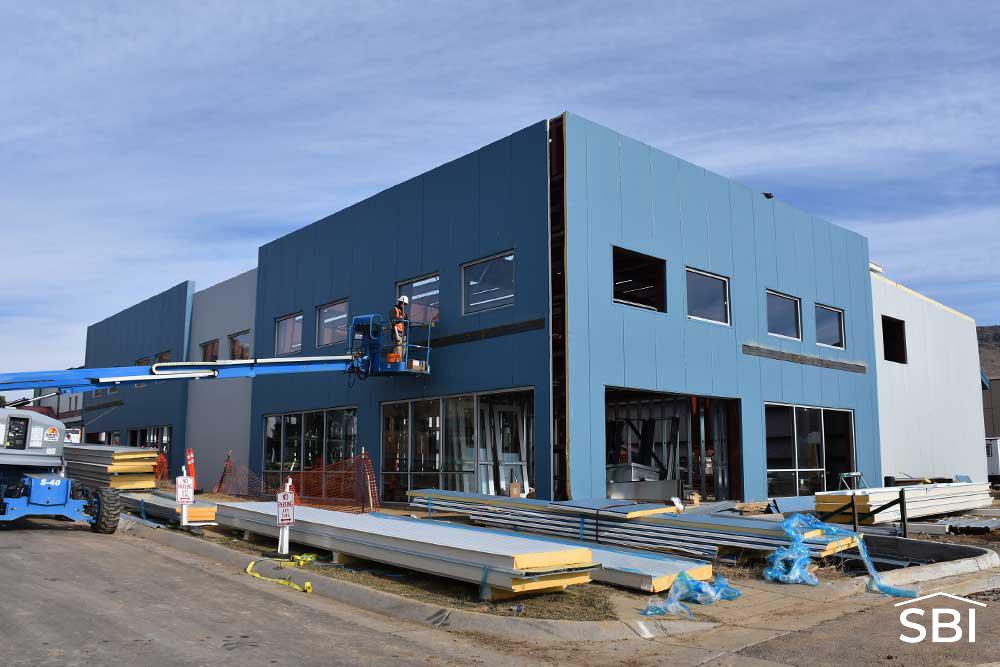

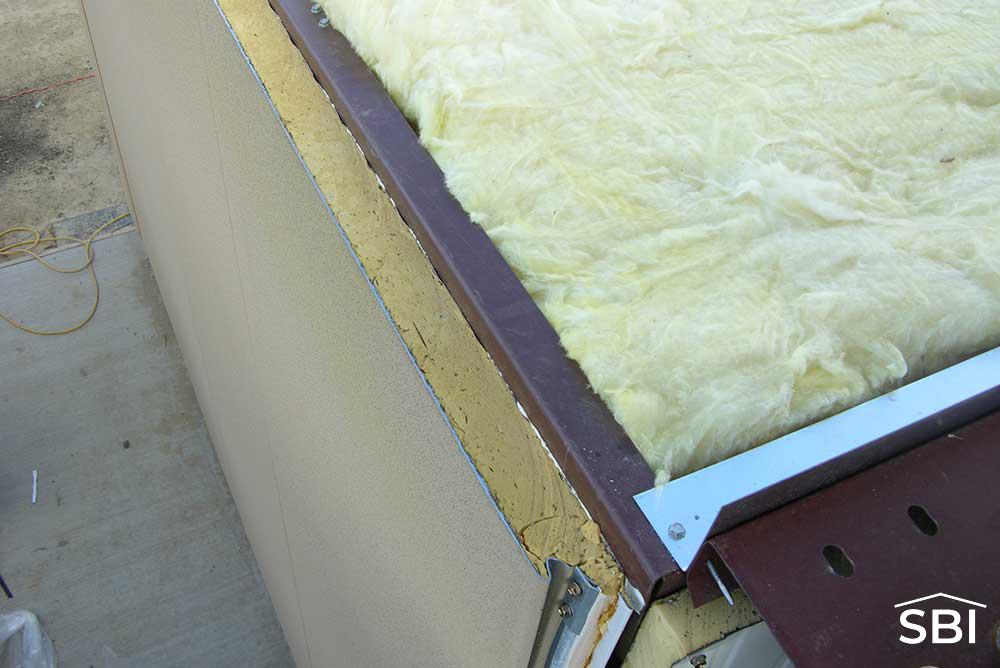

This prefinished panel is designed for fast-track construction, helps save on labor, can offer optional built in fire ratings, and are capable of long spans which requires less structural steel from the building supplier. Panel thicknesses range from 2" to 6" with non-compressed R Values that range from a R-14 to a whopping R-48 performance. The insulated panels are built specifically to your requested building specs on your new building construction. This enables it to be a complete and finished package.

R-Value

The most appealing feature of foam insulated panels is that they offer high R-values with minimal thickness. Every inch of foam equates to 7.2" in R-Value. For example a 4" panel holds an R-Value of 28.8. We are also now offering hybrid insulation foam core insulated panels that equate to R-8 for every inch.

Thickness

R-Value

Hybrid

2"
14.4
16.0
2.5"
18.0
20.0
3"
21.6
24.0
4"
28.8
32.0
5"
36.0
40.0
6"
43.2
48.0
